How Do We Ensure Precision When Ball Bar Measurement Test CNC Machines Drift Over Time?

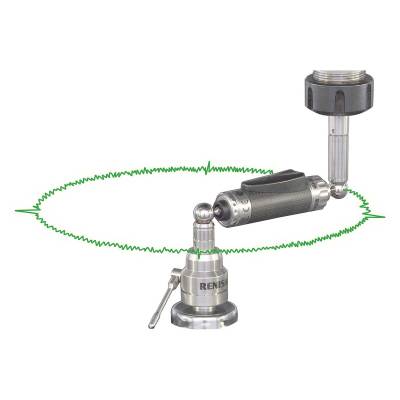

When we carry out Ball Bar Test on CNC Machine Services in Ahmedabad, our focus is on understanding how a machine behaves when asked to follow a perfect circular path. Just a few errors can reveal quite a bit of a backtrack, mismatch of the servo, wrongly aligned geometry, or even reversal of an axis. Machines that are running daily and have been relied upon at Machinery Clinic for our work, seem to be quite stable superficially, but in fact, the hidden motion errors slowly but surely become bigger and finally, they influence the accuracy of the part. The ability of the ball bar setup to convert circular motion into measurable data helps us interpret the true health of a CNC system without dismantling or interrupting production for long durations.

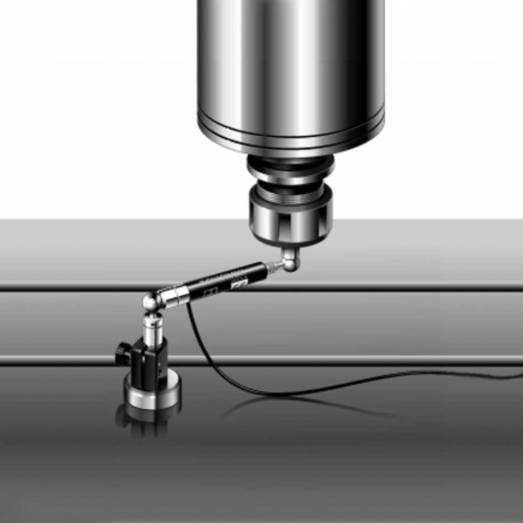

The ball bar instrument provides a means for us to collect a continuous stream of positional data, which essentially helps us understand if the machine's control loops and mechanical parts are working together as they should. Analyzing this pattern enables us to find problems way before they become serious. We have discovered through experience that regular ball bar tests can significantly lessen the occurrence of unplanned machine downtimes and, in addition, lead to more stable machining cycles. In many cases, we also use the Ball Bar Accuracy Test to verify whether these deviations fall within the acceptable precision range before recommending any corrective actions.
We pinpoint angular, radial, and servo-related deviations that affect CNC repetitiveness: We break down how each type of mechanical or servo-related error shows up in the circular plot, helping us read the machine’s movement behavior with clarity.This added visibility allows us to trace the origin of inconsistencies and decide which corrections will bring the axes back into harmony.
We evaluate control loop dynamics for understanding response and stability under load: The test helps us evaluate how the machine reacts to changes in direction and speed, giving insights into servo gain tuning, reversal spikes and transient delays. By studying these response patterns, we can determine whether the drives need recalibration to restore smoother synchronization.
We identify geometry-related issues influencing straightness, squareness, and overall machine consistency: Through this method, we discover whether the axes are perfectly perpendicular or if gradual shifts are impacting production accuracy, a key factor in any Industrial Ball Bar Test assessment. This deeper geometric evaluation guides us in identifying structural deviations before they escalate into repetitive machining inaccuracies.
We interpret motion data to predict failure trends before they impact throughout: By means of long-term pattern comparison, it is possible for us to identify the development of wear, issues with the guideway and servo fatigue. Hence the maintenance teams can be provided with the opportunity of planning their activities more efficiently.
Ballbar Testing Service in India
In this section, we focus on how our Ballbar Testing Service in India helps us identify not only immediate mechanical problems but also long-term alignment concerns that arise from thermal distortion, uneven wear, or spindle-side stresses. We dissect circularity data thoroughly, juxtaposing the differences with the old results to chart the changes of the machine over time. Such an analysis is at the core of our suggestions for the upkeep of the machines which is a great help to production teams in making their machines reliable during ongoing cycles. In case it is needed, we hence, also use the precision test for ball bar as a part of alignment confirmation, thus making sure that even a minor deviation is not overlooked.

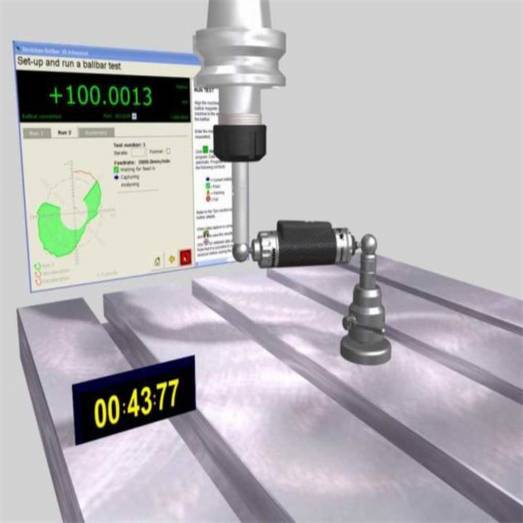

The ball bar procedure is particularly valuable for identifying servo imbalance and axis lag, conditions that might not be visible through visual inspections or simple calibration steps. By using the CNC Ball Bar Test in our workflow, we gain the clarity needed to understand how the axes behave in rapid movements, slow interpolations, and directional reversals. It becomes easier for us to differentiate between mechanical faults and software-level issues, which helps us suggest corrective measures that are both accurate and efficient. At this stage of analysis, we also rely on the Ball Bar Measurement Test, especially when inspecting high-speed machines or precision-focused machining centers that require tight tolerance control.
When we talk about Geometry Checking, we’re really referring to how confidently a CNC machine can deliver the accuracy we expect day after day. Machinery Clinic, we have noticed the effects that very small changes in the precision of the straightness, squareness, or axis alignment have on the quality of the final part. As a result of our work providing Geometry Checking Services in Ahmedabad, we have found that geometric drift masks itself very faintly and moves quietly along long production hours, thermal changes, and natural wear. This is the reason why we are concentrating on turning these insights into something that is simple for the operators to understand rather than being overwhelmed with data. When users can clearly visualize how these geometric shifts affect tool paths, tolerance stability, and surface finish, it becomes much simpler to maintain accuracy and keep machining predictable over time.
Every CNC machine is required to have smooth and predictable linear motion to be able to make accurate cuts and be repeatable to the same level. A slight deviation along the axis can, component dimensions, surface finish and even the machine’s performance be affected. This is the main reason we depend on Linear Axis Laser Calibration Services in Ahmedabad to locate road errors and fix them before it is too late. At Machinery Clinic, we check for straightness, positional accuracy and directional stability to make sure that each axis is moving as it was programmed. This evaluation helps prevent dimensional drift, reduces manual adjustments and keeps machining operations stable during long production cycles. It additionally supports our comprehension of the interaction of various machine components during a straight movement, thus disclosing mechanical patterns that may influence the precision gradually. With this thorough investigation, we verify that every axis is running efficiently under different weights and working conditions.
We collaborate closely with industries that require accurate rotary axis performance for their high-precision machining needs. At Machinery Clinic, we do this by looking in detail at the rotary movement, thermal expansion, and mechanical load, to be sure that the performance is the best one. With the help of the Rotary Axis Laser Calibration Services in Ahmedabad, we are able to locate the alignment, angular errors, and repeatability to achieve the same machining results in different production environments. One of the fundamental methods we use is Precision Rotary Axis Calibration which gives us the ability to detect very slight rotational inconsistencies and rectify them before the production line is affected. These slight deviations which are very often only a few tenths of a degree can affect greatly the dimensional accuracy, surface finish, and assembly fit.
