How Can Small Rotational Deviations Affect Overall Machine Accuracy And Output Quality?
We collaborate closely with industries that require accurate rotary axis performance for their high-precision machining needs. At Machinery Clinic, we do this by looking in detail at the rotary movement, thermal expansion, and mechanical load, to be sure that the performance is the best one. With the help of the Rotary Axis Laser Calibration Services in Ahmedabad, we are able to locate the alignment, angular errors, and repeatability to achieve the same machining results in different production environments. One of the fundamental methods we use is Precision Rotary Axis Calibration which gives us the ability to detect very slight rotational inconsistencies and rectify them before the production line is affected. These slight deviations which are very often only a few tenths of a degree can affect greatly the dimensional accuracy, surface finish, and assembly fit.
We also focus on the broader mechanical environment to maintain high standards of accuracy. Evaluating vibration, gear engagement, and encoder performance allows us to detect issues that may not be visible during simple inspections. By implementing Industrial Rotary Axis Calibration, we are able to track the impact of continuous wear and repeated cycles on the performance of the axis, thus ensuring the latter's stability over time. By grasping these tiny mechanical details, we can certainly figure off deviations that are going to occur before they actually show in the production. The procedure serves as a means for different industries to get the actual response of their rotary axes, thus being able to close the gap between the theoretical machine capability and the real-world performance.
CNC Machine Rotary Axis Laser Calibration Service in India
Keeping the accuracy of CNC rotary axes is a matter of looking after both the mechanical and electronic parts. At our place, we do it by taking very accurate measurements and then making the necessary adjustments so that the machines continue to work as they were initially designed and within the allowable tolerance. Using CNC Machine Rotary Axis Laser Calibration Service in India, a very sensitive and precise recording of the deviation from the actual angular positioning and alignment can be done. These deviations impact the quality of the machining operations directly. Such evaluations give us the opportunity to stop the gradual errors that can become so long as to a whole cycle of machining during which the components will still be able to meet the strict dimensional and surface finish standards.

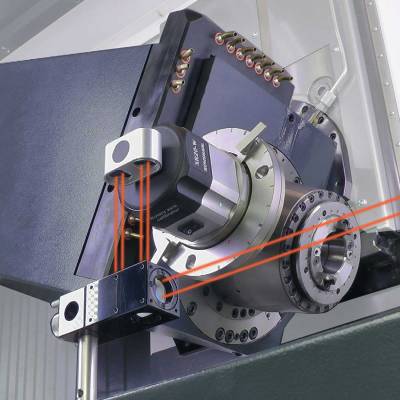

We conduct detailed rotary table calibration for accurate multi-axis positioning: We perform detailed laser measurements of each step of the rotation. With Rotary Table Laser Calibration, we detect very small misalignments or a slight tilt that can produce surface machining errors, thus enabling exact multi-axis machining to be carried out. We ensure that the angular movement of the table is within the specified tolerance. Machining centers equipped with correctly calibrated rotary tables can perform multi-axis operations with repeatable accuracy, thus the risk of deviations in complex machining is greatly reduced and the quality of the components is enhanced.
We correct angular deviations for improved machining accuracy: As part of our calibration, we perform Rotary Axis Laser Alignment to identify and fix any misalignment along the rotary axis. In this way, the machine is able to go exactly along the intended toolpath, thus the mistakes in complex machining operations are minimized. By making these adjustments, the accuracy of the dimensions is not the only thing that gets better; the life of the cutting tools is also prolonged and the spindle, as well as other parts of the machine that are subject to wear, can be worn less.
We monitor thermal and load effects on rotary axis performance over time: Heat and load variations can subtly change angular positions, affecting precision during prolonged machining operations. By observing these effects during real machining conditions, we can make necessary corrections to maintain consistent precision throughout long production runs.
We ensure encoder and servo synchronization for smooth rotary motion: Synchronization between the encoder feedback and servo drive is extremely necessary to achieve a smooth rotary motion. We evaluate the behavior of these subsystems during the speeding-up and slowing-down phases, thus diminishing the angular lag and enhancing the stability of the axis in general. The correct synchronization is a prerequisite for a high level of the machine's responsiveness, it also helps to ensure that the speed is controlled consistently and the rotational positioning is accurate.
When we carry out Ball Bar Test on CNC Machine Services in Ahmedabad, our focus is on understanding how a machine behaves when asked to follow a perfect circular path. Just a few errors can reveal quite a bit of a backtrack, mismatch of the servo, wrongly aligned geometry, or even reversal of an axis. Machines that are running daily and have been relied upon at Machinery Clinic for our work, seem to be quite stable superficially, but in fact, the hidden motion errors slowly but surely become bigger and finally, they influence the accuracy of the part. The ability of the ball bar setup to convert circular motion into measurable data helps us interpret the true health of a CNC system without dismantling or interrupting production for long durations.
When we talk about Geometry Checking, we’re really referring to how confidently a CNC machine can deliver the accuracy we expect day after day. Machinery Clinic, we have noticed the effects that very small changes in the precision of the straightness, squareness, or axis alignment have on the quality of the final part. As a result of our work providing Geometry Checking Services in Ahmedabad, we have found that geometric drift masks itself very faintly and moves quietly along long production hours, thermal changes, and natural wear. This is the reason why we are concentrating on turning these insights into something that is simple for the operators to understand rather than being overwhelmed with data. When users can clearly visualize how these geometric shifts affect tool paths, tolerance stability, and surface finish, it becomes much simpler to maintain accuracy and keep machining predictable over time.

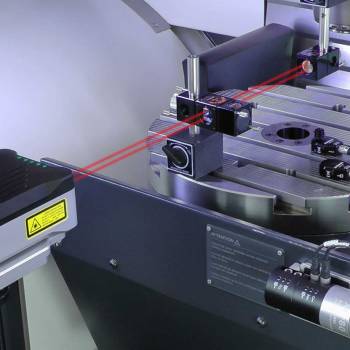

Every CNC machine is required to have smooth and predictable linear motion to be able to make accurate cuts and be repeatable to the same level. A slight deviation along the axis can, component dimensions, surface finish and even the machine’s performance be affected. This is the main reason we depend on Linear Axis Laser Calibration Services in Ahmedabad to locate road errors and fix them before it is too late. At Machinery Clinic, we check for straightness, positional accuracy and directional stability to make sure that each axis is moving as it was programmed. This evaluation helps prevent dimensional drift, reduces manual adjustments and keeps machining operations stable during long production cycles. It additionally supports our comprehension of the interaction of various machine components during a straight movement, thus disclosing mechanical patterns that may influence the precision gradually. With this thorough investigation, we verify that every axis is running efficiently under different weights and working conditions.
